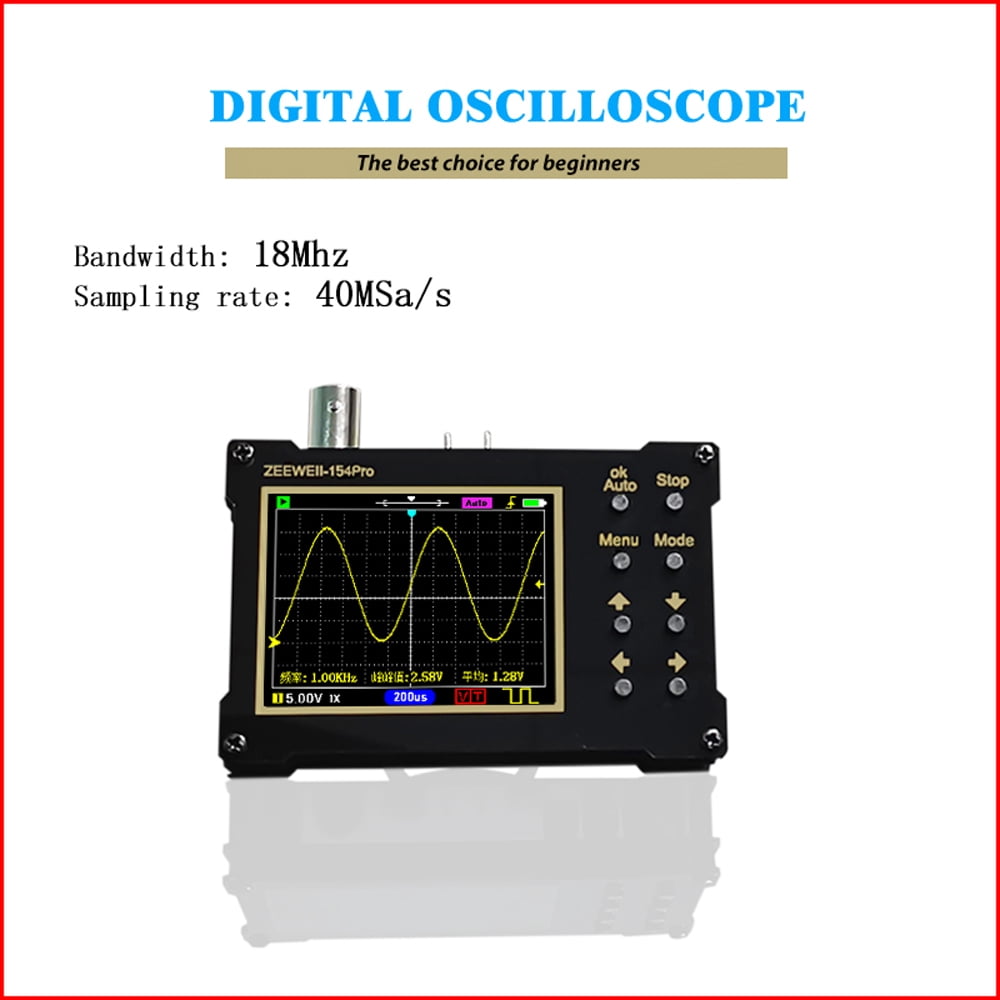

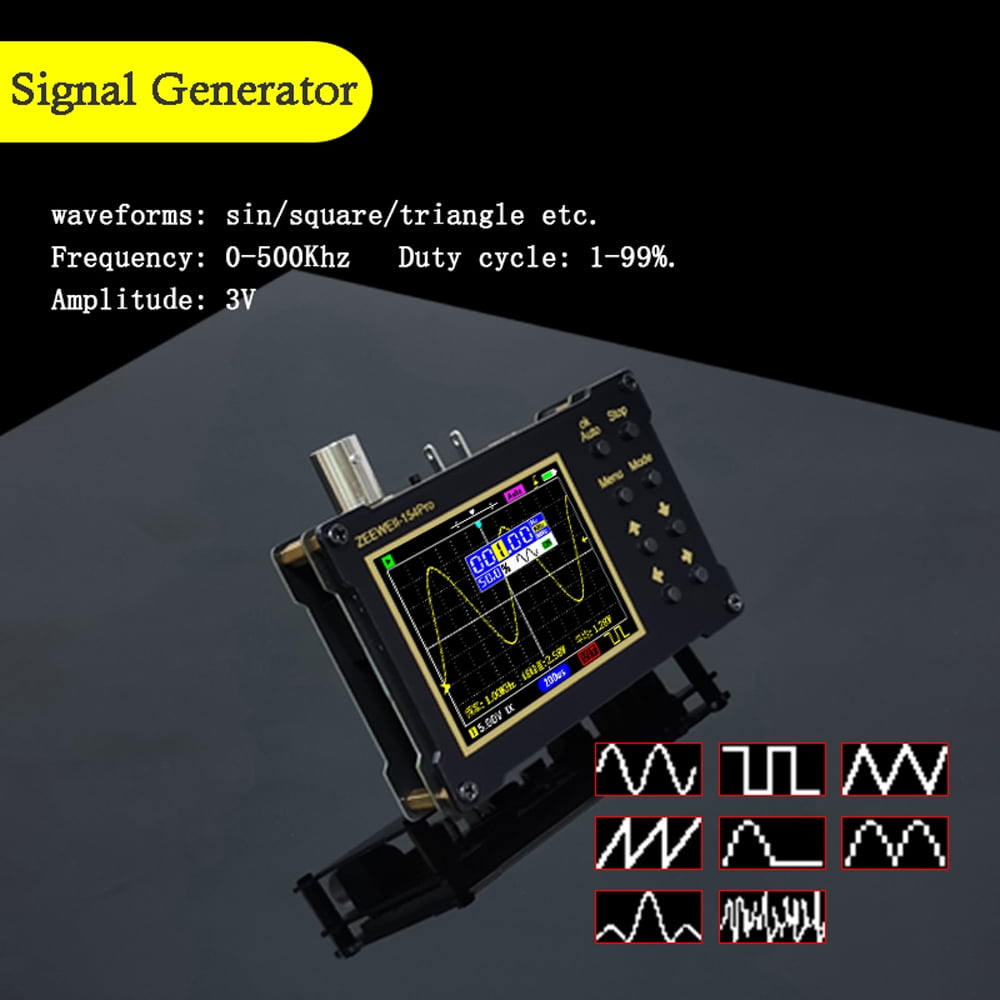

ZEEWEII DSO154Pro 320*240 Resolution 2.4-inch TFT Color Screen Digital Oscilloscope 40MSas Sampling Rate Support Signal Generator

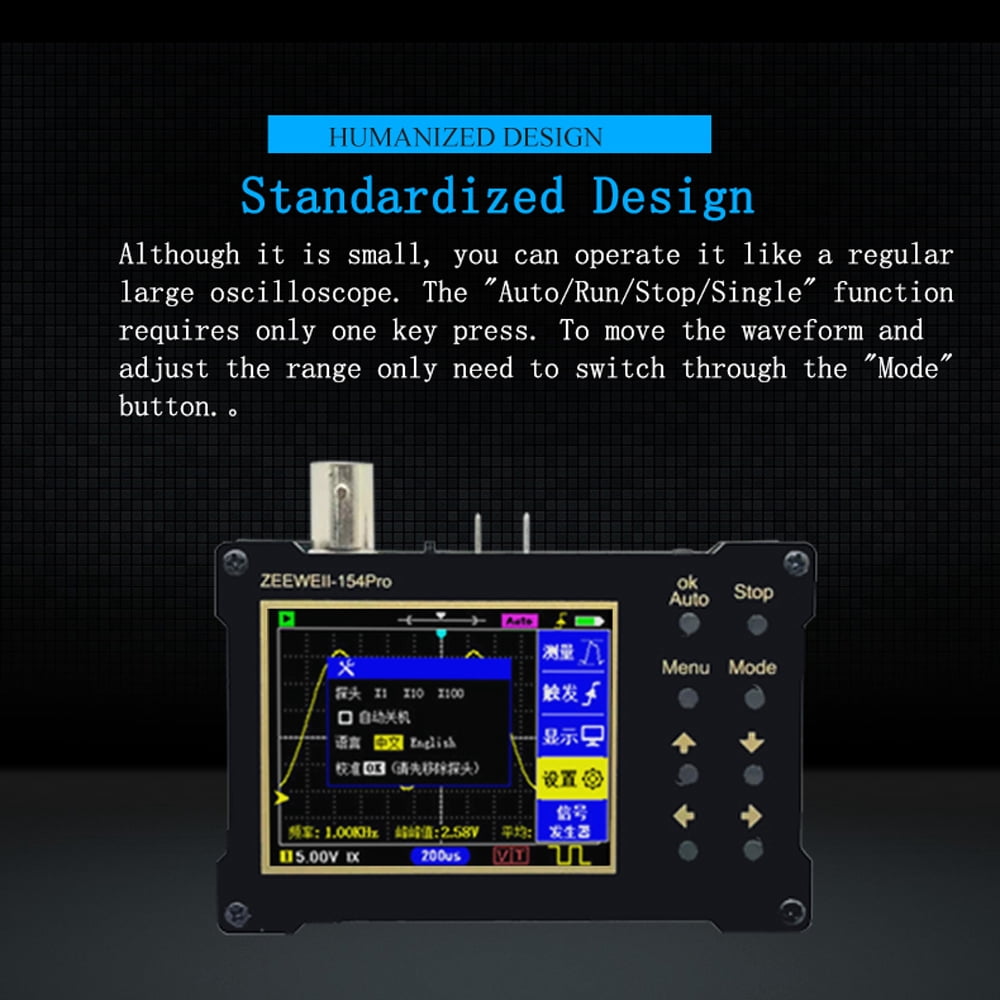

This quality oscilloscope has ARM+FPGA+ADC architecture, 40MSas sampling rate, more stable and with higher precisions. Widely application on mcu debugging, car repairing, home appliance repairing, DIY electronic competition, power-supply debugging, inverter, etc. You can have a try.<br> <br> <strong>Features:<br> 2.4 Inch TFT LCD Display: </strong>Equipped with 320*240 resolution color TFT LCD display, with bright colors and high contrast, you can see the data clearly.<br> High Practicality: ARM+FPGA+ADC architecture, with 40MSas sampling rate, more stable and with higher precisions.<br> <strong>Optional Bandwidth: </strong>There are two bandwidths for you to choose, you can choose 1M bandwith version or 18M bandwith version depending on you needs, which can easily cope with measurement tests in various fields.<br> <strong>Humanized Design: </strong>Compact appearance, with 8pcs buttons design, it can be used as a portable tool for on-site debugging.<br> <strong>Easy to Use: </strong>Auto adjust, stops, menu and single trigger can all be done with one click. The waveform scaling and movement can be done by simply pressing the Mode button to switch between the 4 directional buttons, which is very convenient.<br> <strong>Squarewave Generator:</strong> Six waveforms including sinewaves, squarewaves and trianglewaves can be output. The upperside of the oscilloscope can output an adjustable waveform of 3V amplitude, the frequency-adjustment- is 0-2MHz, the accuracy is up to 0.1Hz. The duty cycle-adjustment- is 1%-99%. It can be used to calibrate new probes, drive mosFETs, replace crystals, etc.<br> <strong>3 Trigger Modes Design: </strong>Threr are 3 trigger modes design, Auto trigger mode, Normal trigger mode, Single trigger mode.<br> <strong>Rich and Powerful Features:</strong> One button for automatic adjustment, support for single trigger, support 14 measurement parameters, support for X100 high voltage probes.<br> <strong>Widely Applications:</strong>Suitable for mcu debugging, car repairing, home appliance repairing, DIY electronic competition, power-supply debugging, inverter, etc.<br> <br> <strong>Specicifations:</strong><br> Name: Oscilloscope<br> Model: DS0154Pro<br> Material: ABS<br> Bandwidth: 1MHz18MHz <strong>(Optional)</strong><br> <strong>Battery: </strong>according to you selection<br> <strong>1M Bandwidth: no battery included</strong><br> <strong>18M Bandwidth:</strong> 1 * built-in rechargeable lithium battery, 3.7V, 1000mAh<strong> (included)</strong><br> Hardware solution: ARM+FPGA+ADC<br> Screen: 2.4 inch TFT LCD<br> Channel: 1<br> Resolution: 320*240<br> Sampling rate: 40MSas<br> Rise time: &lt;20ns<br> Storage depth: 16Kbit<br> Impedance: 1MΩ<br> Time base: 50ns-10s<br> Vertical sensitivity: 20mVdiv-10Vdiv<br> Max voltage: ±40V(x1);±400V(x10)<br> Input impedance: 1MΩ<br> Signal Generator: 0-500K frequency adjustable, fixed voltage 3.0V<br> Trigger mode: AutoNormalSingle<br> Waveform measurement: 14 types<br> Scroll mode: ≥200ms entering scroll mode<br> Item size: 87 * 58 * 18mm / 3.42 * 2.28 * 0.71 in<br> Package size:<br> 1M Bandwidth Version: 150* 100* 40mm / 5.91* 3.94* 1.57in<br> 18M Bandwidth Version: 200* 110 * 40mm / 7.87* 4.33* 1.57in<br> Package weight:<br> 1M Bandwidth Version: 160g / 5.64ounce<br> 18M Bandwidth Version: 250g / 8.82ounce<br> <br> <strong>Packing List (1M Bandwidth Version):</strong><br> 1 * Oscilloscope<br> 1 * Cable<br> 1 * Bracket<br> 1 * Guideline<br> <br> <strong>OR<br> <br> Packing List (18M Bandwidth Version):</strong><br> 1 * Oscilloscope<br> 1 * Probe<br> 1 * Cable<br> 1 * Bracket<br> 1 * Guideline

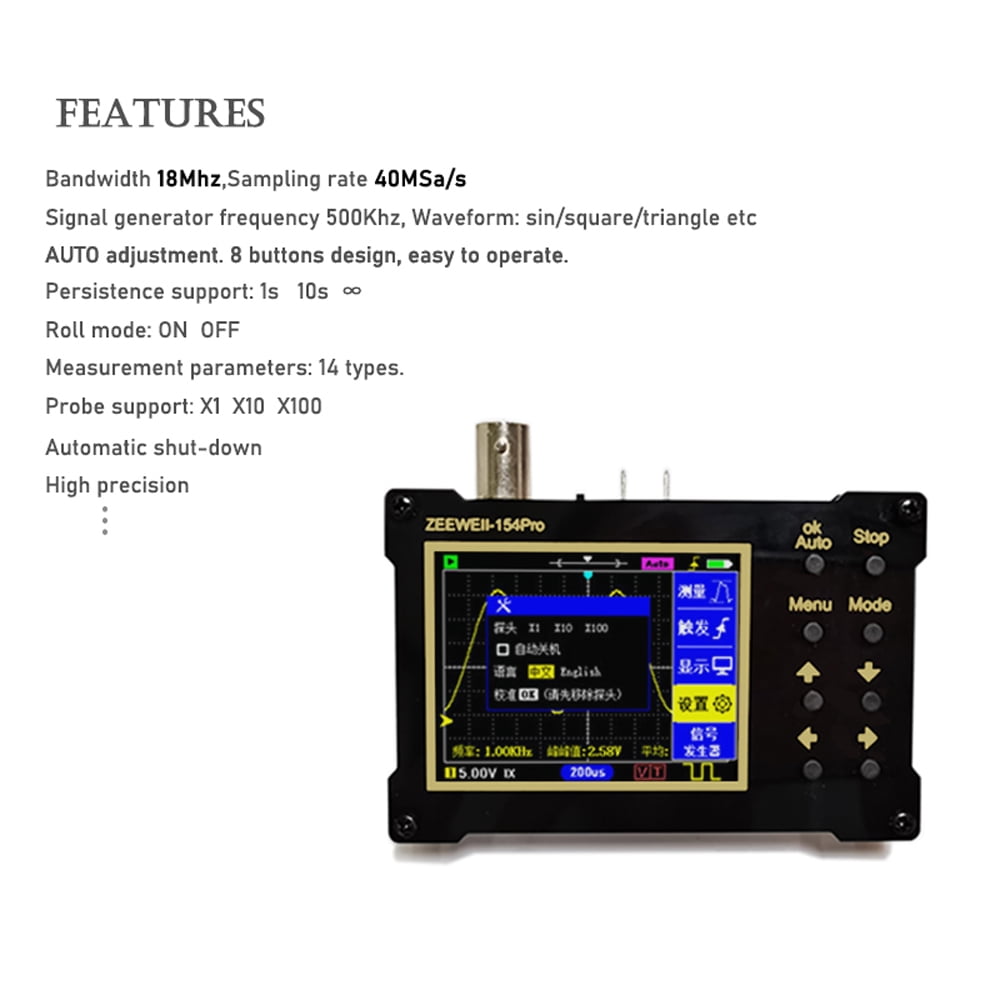

• 2.4 Inch TFT LCD Display: Equipped with 320*240 resolution color TFT LCD display, with bright colors and high contrast, you can see the data clearly.
• High Practicality: ARM+FPGA+ADC architecture, with 40MSas sampling rate, more stable and with higher precisions.
• Optional Bandwidth: There are two bandwidths for you to choose, you can choose 1M bandwith version or 18M bandwith version depending on you needs, which can easily cope with measurement tests in various fields.
• Humanized Des
